ORTOLED - QUANTUM BOARD EVO 2.7 umol/J | 320W SAMSUNG

Samsung's Quantum Board Evo 320W lamp is a light and handy fixture that produces high levels of PPF (864umol/s) and a photonic efficacy of 2.7 umol/J, perfectly covering 1-1.5 sqm of cultivable area.

The Total Agro Ortoled light spectrum produced by the combination of Samsung lm201b 3000K 5000K LEDs + Honglitronic SMD3535 3w 660nm 450nm guarantees an excellent yield and optimum light penetration level without overheating the apical part of the plants.

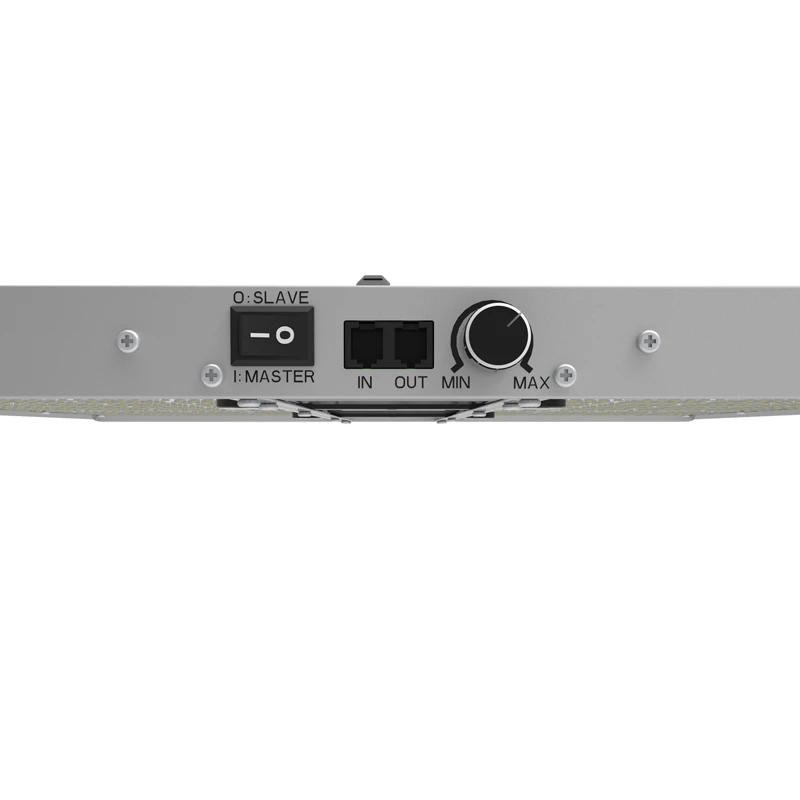

In particular, the EVO series can be connected in series and controlled via the Master/Slave function or via any external 0-10V controller.

Samsung's Quantum Board Ortoled EVO series is built using the highest quality Sosen® power supplies with intergated Ortoled Step Control dimmers that allow dimming in 0-25%-50%-75% and 100% steps to match the growth and flowering phase of the plant without wasting electricity.

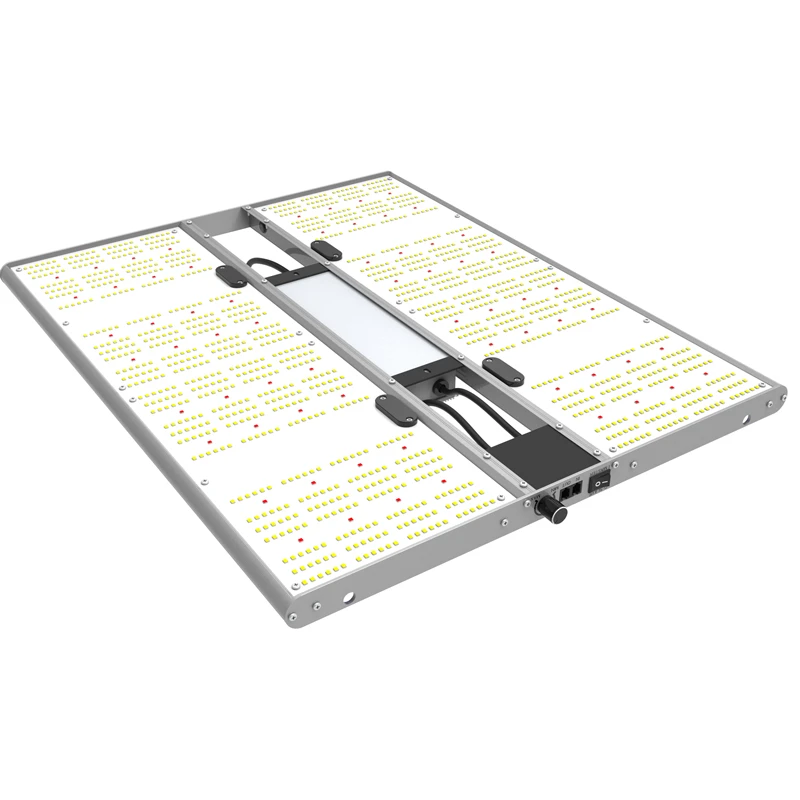

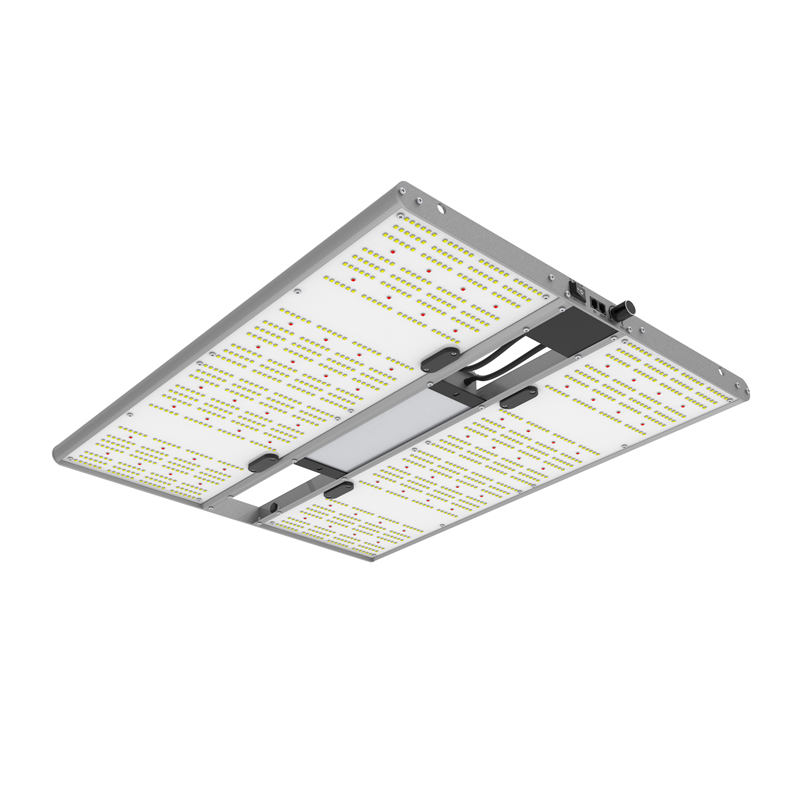

The Samsung lm201b 3000K 5000K LEDs + Honglitronic SMD3535 3w 660nm 450nm LEDs are mounted evenly distributed throughout the lamp body to ensure excellent distribution and perfect dissipation of the heat produced.

The degree of protection is IP65 with utratransparent resin to protect the diodes in order to maintain the luminous flux.

Spectrum Total Agro
The combination and colouring of the LEDs installed picks up all the bands needed by the plant, guaranteeing optimum flow from growth to flowering.

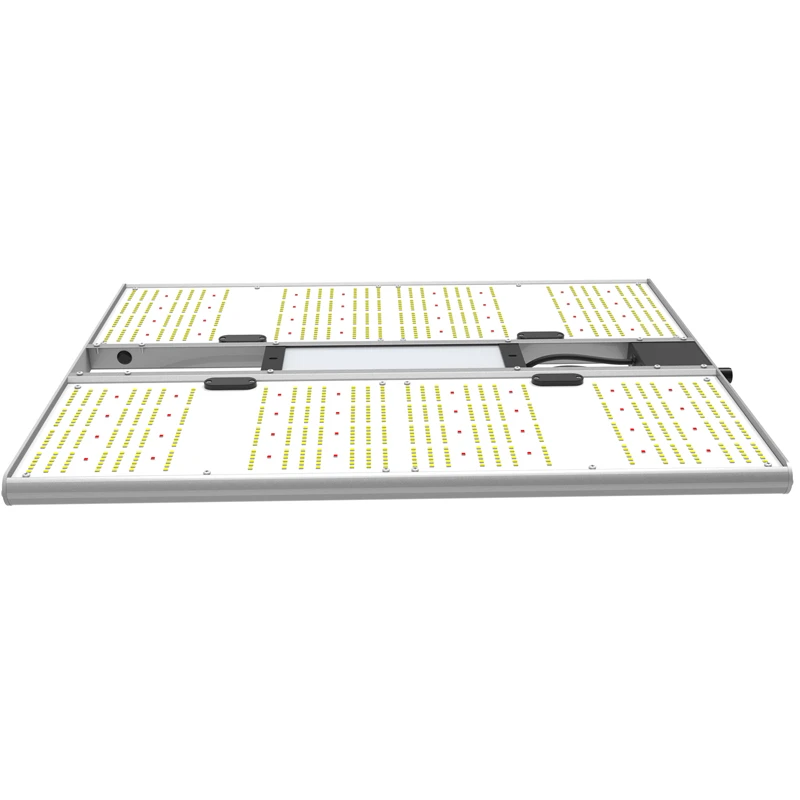

LED distribution Quantum Board 320W

- Warm White 3000K: 780 LEDs
- White 5000K: 660nm: 234 LEDs
- Blue 450-460nm: 26 LEDs
- Deep Red 660nm: 78 LEDs

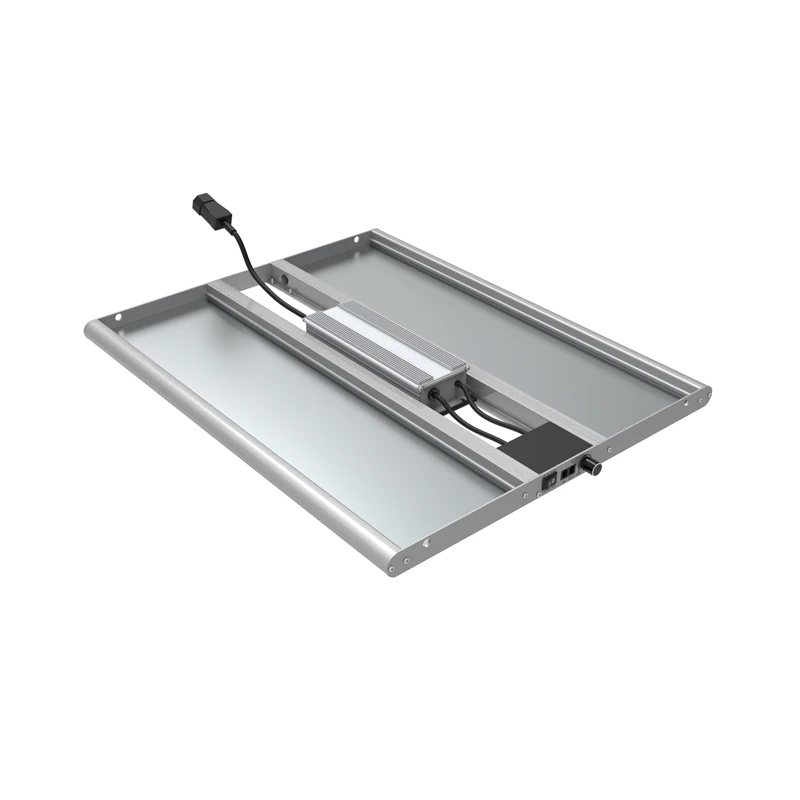

Statically cooled dashboard and Sound zero system
The new Sound zero dashboard designed for the Ortoled Quantum Board EVO 2.7 series provides excellent dissipation of the heat produced by the LEDs. This means that the lamp does not require an additional cooling system. There are therefore no external fans. Thanks to the Sound zero system, the result is a high-performance and extremely quiet lamp.

Technical Specifications Ortoled Quantum Board 320W Evo:

• Efficacy: 2.7 µmol / J
• PPF: 864 µmol / s
• Input voltage: AC 100-277V/50-60HZ

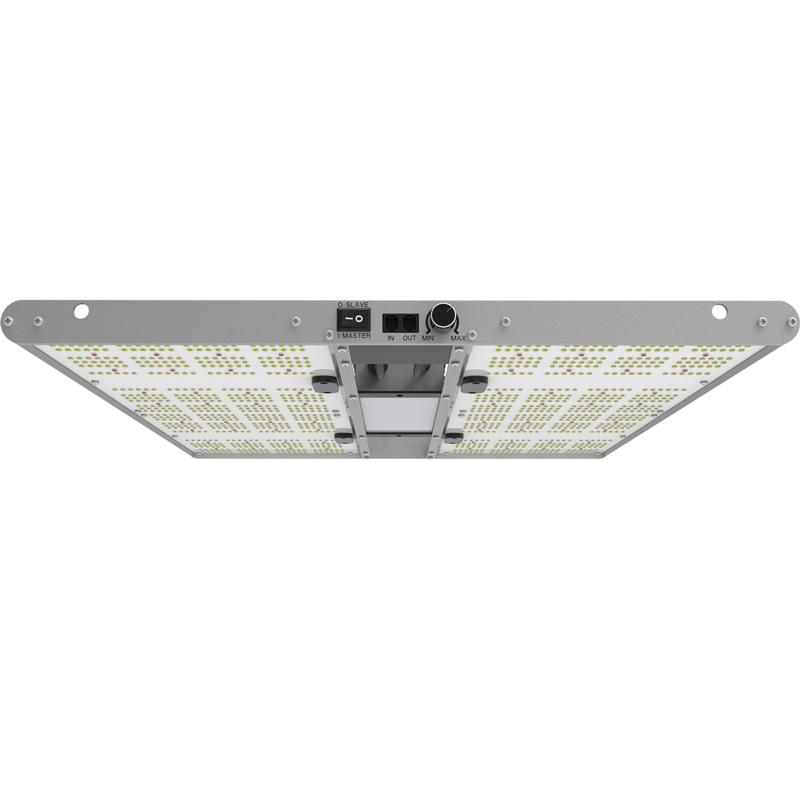

• Lamp control in master/slave series or via 0-10V device
• Power consumption: 320 W
• Illuminable area: 1-1.5 m²
• Distance to plants: min.40 mx.70 cm
• Service life: 60,000 hours
• Light distribution: 120°
• Light source: Samsung lm201b 3000K 5000K LEDs + Honglitronic SMD3535 3w 660nm 450nm
• Dimmable: OFF-25%-50%-75%-100% with Ortoled Step Control dimmer
• Weight: 3.8 kg

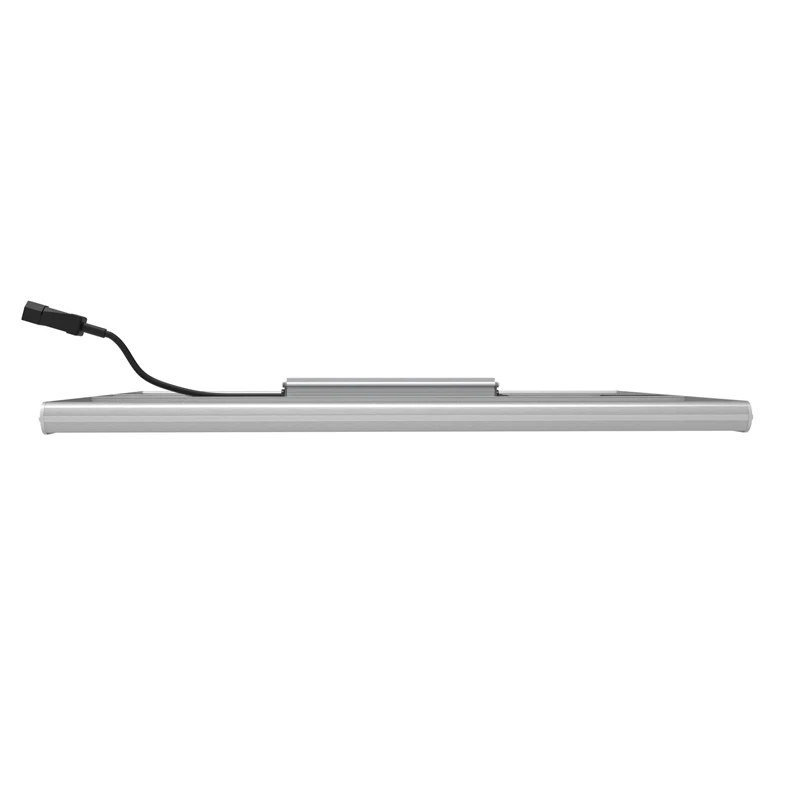

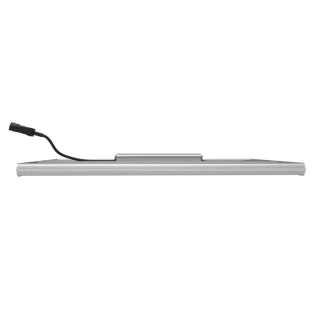

• Dimensions: 500x620x48 mm
• Spectrum: Total Argo

Items included in the package

• 1 x Ortoled Quantum Evo Sound Zero LED panel
• 1 x Power cable
• 2 x Carabiners for suspension
• 1 x 3 m RJ11 signal cable

Key Features Ortoled Quantum Board EVO 320W

• High efficiency 2.7 µmol/J
• High PPF output for 864 µmol/s at high intensity
• Lamp control in master/slave series or via 0-10V device
• High-quality Sosen LED drivers
• Protective cover technology with high-transparency resin
• Total Agro spectrum
• Improved light diffusion and uniformity and Sound zero system
• Compact design ideal for a growing area of up to 1-1.5 m2
• Fully dimmable
• Easy plug & play installation
