ORTOLED - K SERIES
Available
Cod. ORTOLED-23-5K
Standard price
€292,80 VAT included(22%)
Recalculation in progress …
Available
Cod. ORTOLED-24-7K
Standard price
€414,80 VAT included(22%)
Available
Cod. ORTOLED-25-9K
Standard price
€488,00 VAT included(22%)

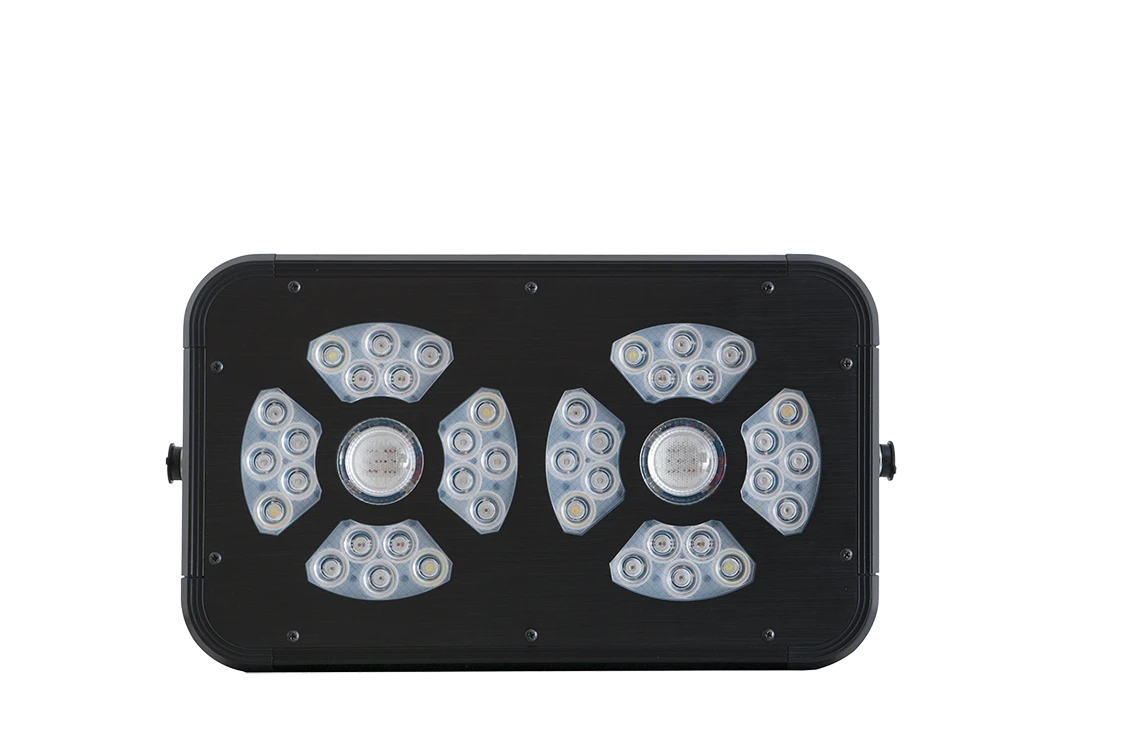

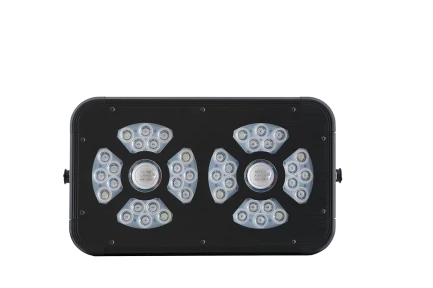

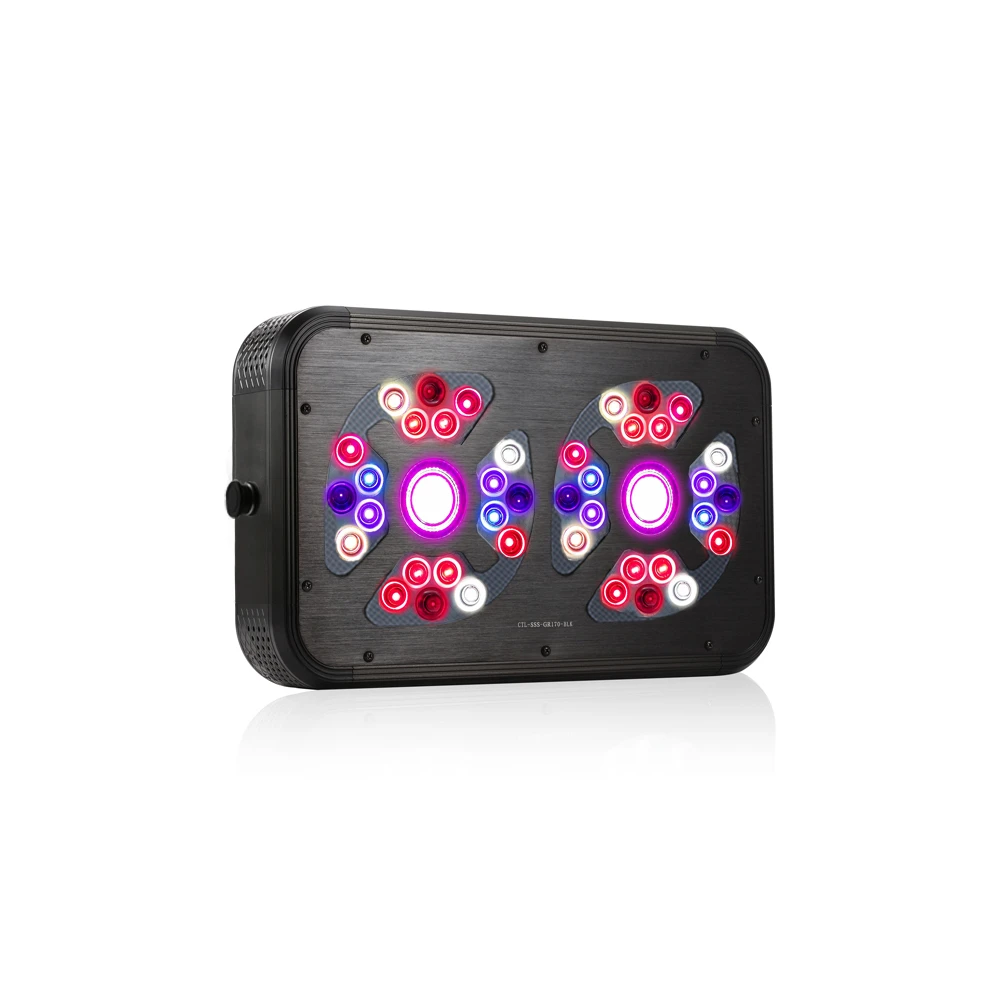

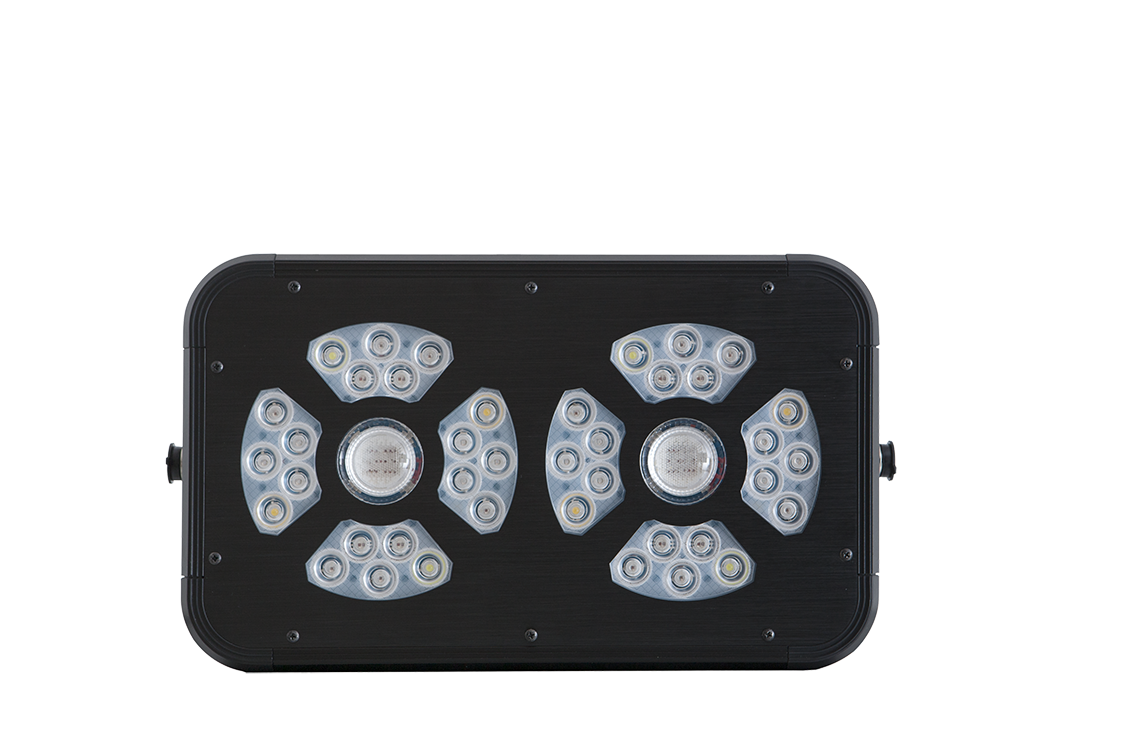

ORTOLED 5K is the new indoor lighting lamp with four independent channels.

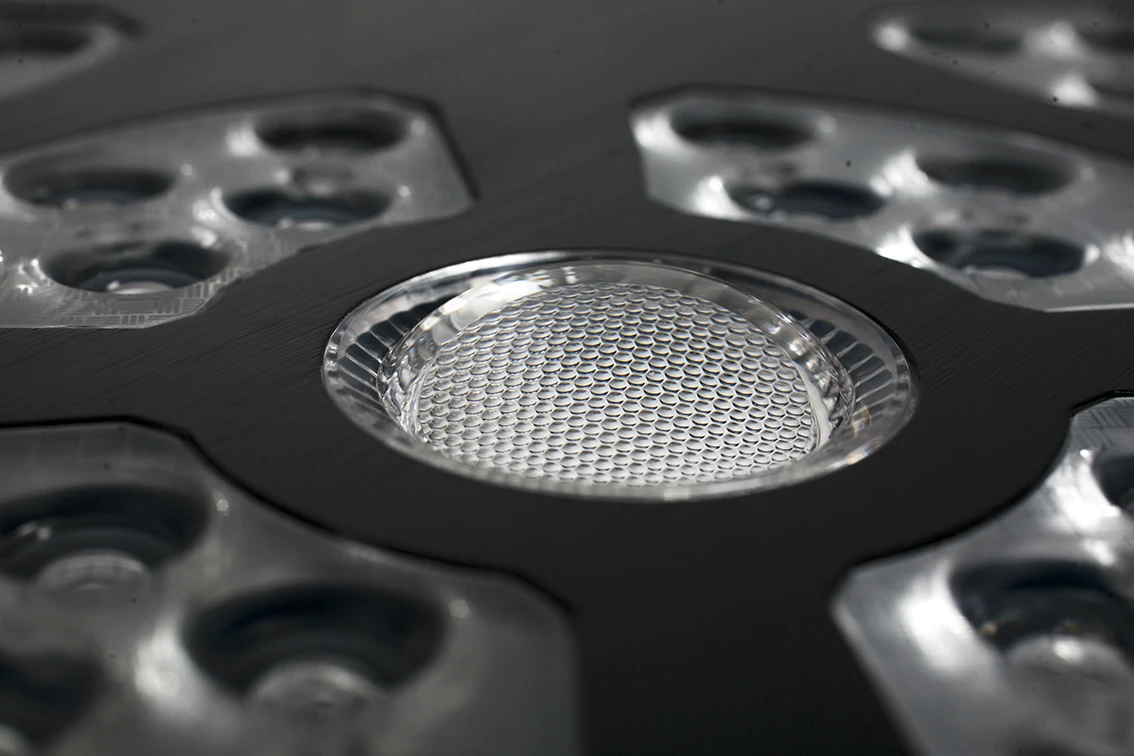

The combination of 2COB EPI® 63Watt high-penetration LEDs and 40 3Watt LEDs allows maximum light absorption by the plants and incredible penetration even in areas shielded by branches and foliage.
The 10-band Total Agro spectrum allows the light of the lamp to be calibrated to meet the demand of the plants. The three light channels (VEGETATION, GROWTH AND FLOWERING) can be operated separately, depending on the phase of the plant, or mixed, resulting in a TOTAL AGRO spectrum. The light output as well as the light colour can be controlled exclusively with the K Control accessory.
In the absence of the K CONTROL accessory the lamp will operate with TOTAL AGRO spectrum.
The wireless K CONTROL accessory (sold separately), allows you to manage the light spectrum, adjust the operation in hourly steps, as well as the ALBA/TRAMONTO function. It also allows you to manage, with wireless technology, several lamps simultaneously, even those not cascaded together.

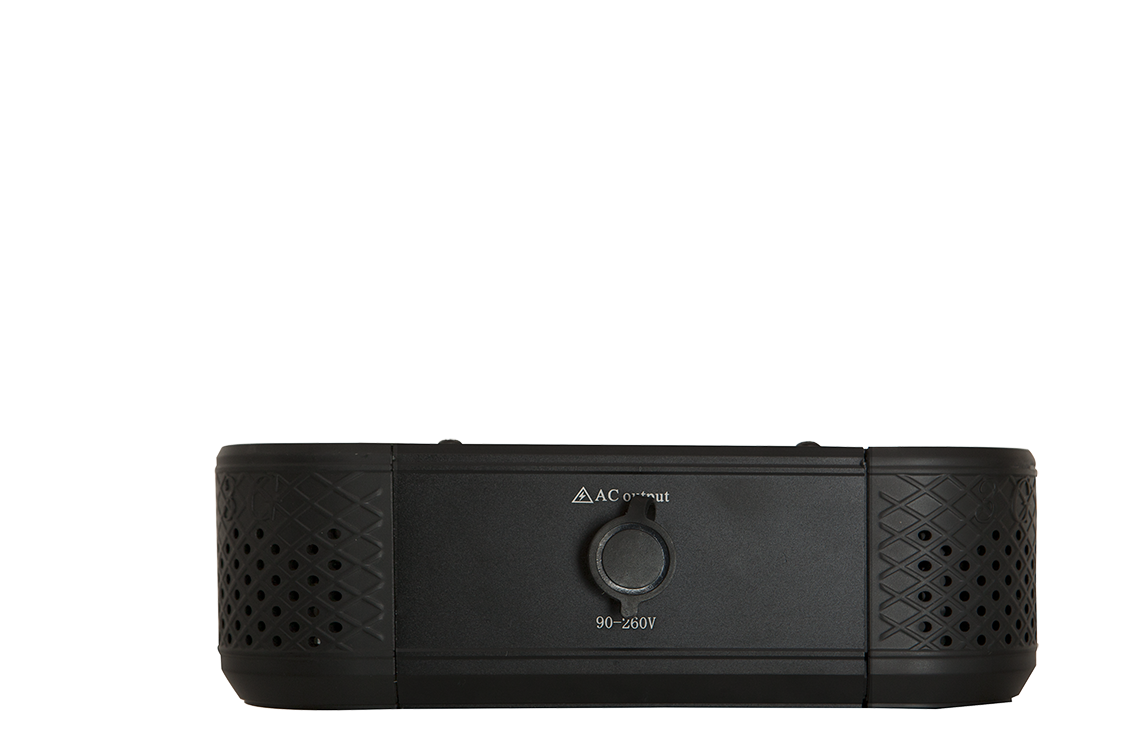

Thanks to the plug&play connection cable (sold separately), up to 8 K Series Ortoled lamps can be cascaded and operated in series.
A perfect synthesis of energy saving and performance.
The combination of 2COB EPI® 63Watt high-penetration LEDs and 40 3Watt LEDs allows maximum light absorption by the plants and incredible penetration even in areas shielded by branches and foliage.
The 10-band Total Agro spectrum allows the light of the lamp to be calibrated to meet the demand of the plants. The three light channels (VEGETATION, GROWTH AND FLOWERING) can be operated separately, depending on the phase of the plant, or mixed, resulting in a TOTAL AGRO spectrum. The light output as well as the light colour can be controlled exclusively with the K Control accessory.
In the absence of the K CONTROL accessory the lamp will operate with TOTAL AGRO spectrum.
The wireless K CONTROL accessory (sold separately), allows you to manage the light spectrum, adjust the operation in hourly steps, as well as the ALBA/TRAMONTO function. It also allows you to manage, with wireless technology, several lamps simultaneously, even those not cascaded together.
Thanks to the plug&play connection cable (sold separately), up to 8 K Series Ortoled lamps can be cascaded and operated in series.
A perfect synthesis of energy saving and performance.
Technical specifications Ortoled 5 K Series:
- Power: 270W
- Actual consumption: 180W +/-5%.
- Illuminated area minimum 0.4 m2 maximum 1.2 m2 depending on positioning
- Minimum plant lamp distance 35 cm
- Input AC 85V - 265V / 50-60Hz
- Total Illumination Spectrum: 10 Bands with UV & INFRARED from 380nm to 740nm Full PAR & Full Spectrum
- 4 Lighting Channels: Growth / Vegetative / Flowering / TOTAL AGRO
- COB EPI®
- Up to 8 cascade lamps
- Dimensions: L220mm - W420mm - H70mm
- Net weight: 3.2 kg
- Operating range: -10°C to +50°C with max. 85% humidity
- Certification: ROHS CE IP50 not waterproof
- Plant Lighting Efficacy - Electrical Efficiency: 1.9 umol/J
-
Equivalent to 350W HPS or compact flourescence lamp
ORTOLED 7K is the new indoor lighting lamp with four independent channels.
The combination of 3COB EPI® LED 63Watt high-penetration and 60 3Watt LEDs allows maximum light absorption by the plants and incredible penetration even in areas shielded by branches and foliage.
The 10-band Total Agro spectrum allows the light of the lamp to be calibrated to meet the demand of the plants. The three light channels (VEGETATION, GROWTH AND FLOWERING) can be operated separately, depending on the phase of the plant, or mixed, resulting in a TOTAL AGRO spectrum. The light output as well as the light colour can be controlled exclusively with the K Control accessory.
In the absence of the K CONTROL accessory the lamp will operate with TOTAL AGRO spectrum.
The wireless K CONTROL accessory (sold separately), allows you to manage the light spectrum, adjust the operation in hourly steps, as well as the ALBA/TRAMONTO function. It also allows you to manage, with wireless technology, several lamps simultaneously, even those not cascaded together.
Thanks to the plug&play connection cable (sold separately), up to 8 K Series Ortoled lamps can be cascaded and operated in series.
A perfect synthesis of energy saving and performance.
Technical specifications Ortoled 7 K Series:
The combination of 3COB EPI® LED 63Watt high-penetration and 60 3Watt LEDs allows maximum light absorption by the plants and incredible penetration even in areas shielded by branches and foliage.
The 10-band Total Agro spectrum allows the light of the lamp to be calibrated to meet the demand of the plants. The three light channels (VEGETATION, GROWTH AND FLOWERING) can be operated separately, depending on the phase of the plant, or mixed, resulting in a TOTAL AGRO spectrum. The light output as well as the light colour can be controlled exclusively with the K Control accessory.
In the absence of the K CONTROL accessory the lamp will operate with TOTAL AGRO spectrum.
The wireless K CONTROL accessory (sold separately), allows you to manage the light spectrum, adjust the operation in hourly steps, as well as the ALBA/TRAMONTO function. It also allows you to manage, with wireless technology, several lamps simultaneously, even those not cascaded together.
Thanks to the plug&play connection cable (sold separately), up to 8 K Series Ortoled lamps can be cascaded and operated in series.
A perfect synthesis of energy saving and performance.
Technical specifications Ortoled 7 K Series:
- Power: 405W
- Actual consumption: 270W +/-5%.
- Illuminated area minimum 0.5 m2 maximum 1.8 m2 depending on positioning
- Minimum plant lamp distance 35 cm
- Input AC 85V - 265V / 50-60Hz
- Total Illumination Spectrum: 10 Bands with UV & INFRARED from 380nm to 740nm Full PAR & Full Spectrum
- 4 Lighting Channels: Growth / Vegetative / Flowering / TOTAL AGRO
- COB EPI®
- Up to 8 cascade lamps
- Dimensions: W220mm - L660mm - H70mm
- Net weight: 4.2 kg
- Operating range: -10°C to +50°C with max. 85% humidity
- Certification: ROHS CE IP50 not waterproof
- Equivalent to 480W HPS lamp
- Plant Lighting Efficacy - Electrical Efficiency: 1.9 umol/J
ORTOLED 9K is the new indoor lighting lamp with four independent channels.
The combination of 4 high-penetration 63Watt COB EPI® LEDs and 80 3Watt LEDs allows maximum light absorption by the plants and incredible penetration even in areas shielded by branches and foliage.
The 10-band Total Agro spectrum allows the light of the lamp to be calibrated to meet the demand of the plants. The three light channels (VEGETATION, GROWTH AND FLOWERING) can be operated separately, depending on the phase of the plant, or mixed, resulting in a TOTAL AGRO spectrum. The light output as well as the light colour can be controlled exclusively with the K Control accessory.
In the absence of the K CONTROL accessory the lamp will operate with TOTAL AGRO spectrum.
The wireless K CONTROL accessory (sold separately), allows you to manage the light spectrum, adjust the operation in hourly steps, as well as the ALBA/TRAMONTO function. It also allows you to manage, with wireless technology, several lamps simultaneously, even those not cascaded together.
Thanks to the plug&play connection cable (sold separately), up to 8 K Series Ortoled lamps can be cascaded and operated in series.
A perfect synthesis of energy saving and performance.
Technical specifications Ortoled 9 K Series:
The combination of 4 high-penetration 63Watt COB EPI® LEDs and 80 3Watt LEDs allows maximum light absorption by the plants and incredible penetration even in areas shielded by branches and foliage.
The 10-band Total Agro spectrum allows the light of the lamp to be calibrated to meet the demand of the plants. The three light channels (VEGETATION, GROWTH AND FLOWERING) can be operated separately, depending on the phase of the plant, or mixed, resulting in a TOTAL AGRO spectrum. The light output as well as the light colour can be controlled exclusively with the K Control accessory.
In the absence of the K CONTROL accessory the lamp will operate with TOTAL AGRO spectrum.
The wireless K CONTROL accessory (sold separately), allows you to manage the light spectrum, adjust the operation in hourly steps, as well as the ALBA/TRAMONTO function. It also allows you to manage, with wireless technology, several lamps simultaneously, even those not cascaded together.
Thanks to the plug&play connection cable (sold separately), up to 8 K Series Ortoled lamps can be cascaded and operated in series.
A perfect synthesis of energy saving and performance.
Technical specifications Ortoled 9 K Series:
- Power: 540W
- Actual consumption: 360W +/-5%.
- Illuminated area minimum 1 m2 maximum 2.5 m2 depending on positioning
- Minimum plant lamp distance 35 cm
- Input AC 85V - 265V / 50-60Hz
- Total Illumination Spectrum: 10 Bands with UV & INFRARED from 380nm to 740nm Full PAR & Full Spectrum
- COB EPI®
- 4 Lighting Channels: Growth / Vegetative / Flowering / TOTAL AGRO
- Up to 8 cascade lamps
- Dimensions: W420mm - H70mm
- Net weight: 6 kg
- Operating range: -10°C to +50°C with max. 85% humidity
- Certification: ROHS CE IP50 not waterproof
- Equivalent to 650W HPS or compact fluorescent lamp
- Plant Lighting Efficacy - Electrical Efficiency: 1.9 umol/J
Cod. ORTOLED-51-KCAVO
Unavailable at the moment
€ 12,20 VAT included(22%)
