ORTOLED - LITTLE MONSTER QUANTUM BOARD FULL CYCLE DIMMERABLE | 100W 2.7µmol/J
Recalculation in progress … The Ortoled Little Monster Full Cycle 100W Dimmable 0-100% Honglitronic lamp is a light and handy fixture that produces high PPF levels and a photonic efficacy of 2.7µmol/J , perfectly covering 0.5-0.80 m2 of grow area.
The Full Cycle Ortoled light spectrum produced by the combination of Honglitronic SMD2835 LEDs * 320PCS
+ Honglitronic SMD3535 * 15PCS guarantees excellent yield and optimum light penetration without overheating the apex of the plants.

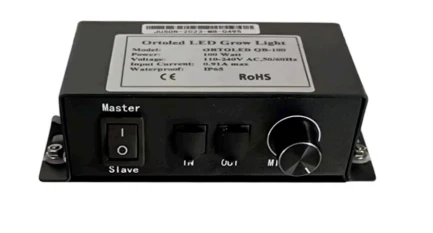

The Ortoled Little Monster Full Cycle 100W series is built using the highest quality 0-100% dimmable Juson LED Drivers with knob control.

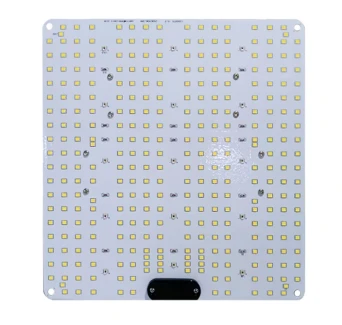

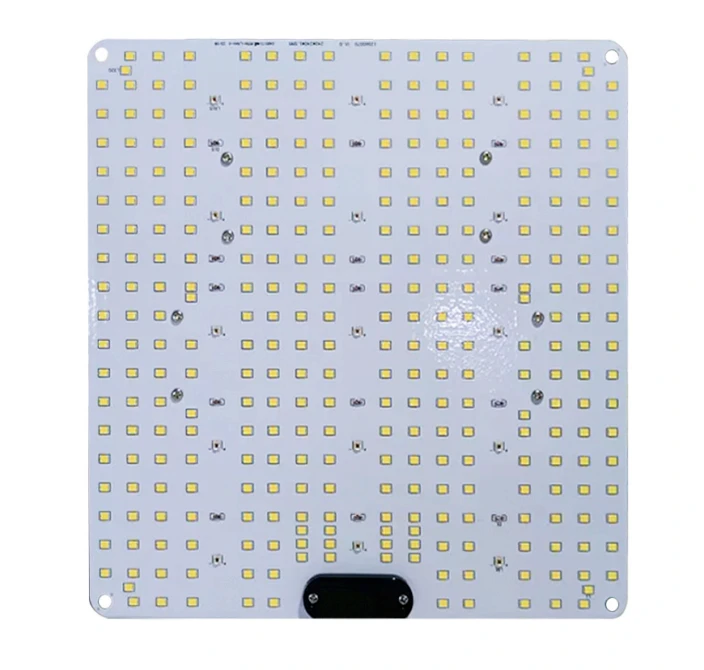

The Honglitronic SMD2835 * 320PCS + Honglitronic SMD3535 * 15PCS diodes are mounted evenly distributed throughout the lamp body to ensure excellent distribution and perfect dissipation of the heat produced.
The degree of protection is IP65 with utratransparent resin to protect the diodes in order to maintain the luminous flux.
Full Cycle Spectrum
The combination and colouring of the LEDs installed picks up all the bands needed by the plant, guaranteeing optimum flow from growth to flowering for small areas.
LED distribution Ortoled Full Cycle 60W Samsung
-HonglitronicSMD2835 * 320PCS
-HonglitronicSMD3535 * 15PCS
Statically cooled dashboard and Sound zero system
The new Sound zero dashboard designed for the Ortoled Little Monster Full Cycle 100W series provides excellent dissipation of the heat produced by the LEDs. This means that the lamp does not require an additional cooling system. There are therefore no external fans. Thanks to the Sound zero system, the result is a high-performance and extremely quiet lamp.
Technical Specifications Ortoled Quantum Little Monster Board Full Cycle 100W:
- Efficacy: 2.7 µmol / J
- Input voltage: AC 100-277V/50-60HZ
- Power consumption: 100 W
- Illuminable area: 0.5-0.80 m2
- Distance to plants: min.30 max.60 cm
- Service life: 60,000 hours
- Light distribution: 120
- Light source: Honglitronic SMD2835 * 320PCS + Honglitronic SMD3535 * 15PCS
- Weight: 1.5kg
- Dimensions: 250x250x61 mm
- Spectrum: Full Cycle 4000K+660nm
Items included in the package
- 1x 100w Ortoled FC 100W
- 1x 1.8m Power cable
- 2x Adjustable suspension cable
- 1x Master and Slave Daisy Control connection cable Supports any 0-10V external controller
- 2x Fixed suspension cable
Key Features Ortoled FULL CYCLE 100W 2.7 µmol/J
- High efficiency 2.7 µmol/J
- Juson® LED driver with 0-100% adjustable power
- Protective cover technology with high-transparency resin
- Full cycle spectrum
- Master and Slave Daisy Control connection function / Supports any 0-10V external controller
- Improved light diffusion and uniformity and Sound zero system
- Compact design ideal for a growing area of up to 0.5-0.80 m2 or maintenance 1 m2
- Easy Plug & Play installation
Do not use the LED luminaire vertically or as an upside-down luminaire (direct contact with
eyes and prolonged exposure can cause permanent damage to your eyesight!).
We do not recommend using the device as a room light. It is designed and developed
exclusively for the germination, cultivation and flowering of plants. Ensure that the LED luminaire is
used out of sight and out of reach of children and animals to protect their eyes!
We recommend the use of special glasses to protect your eyes.
